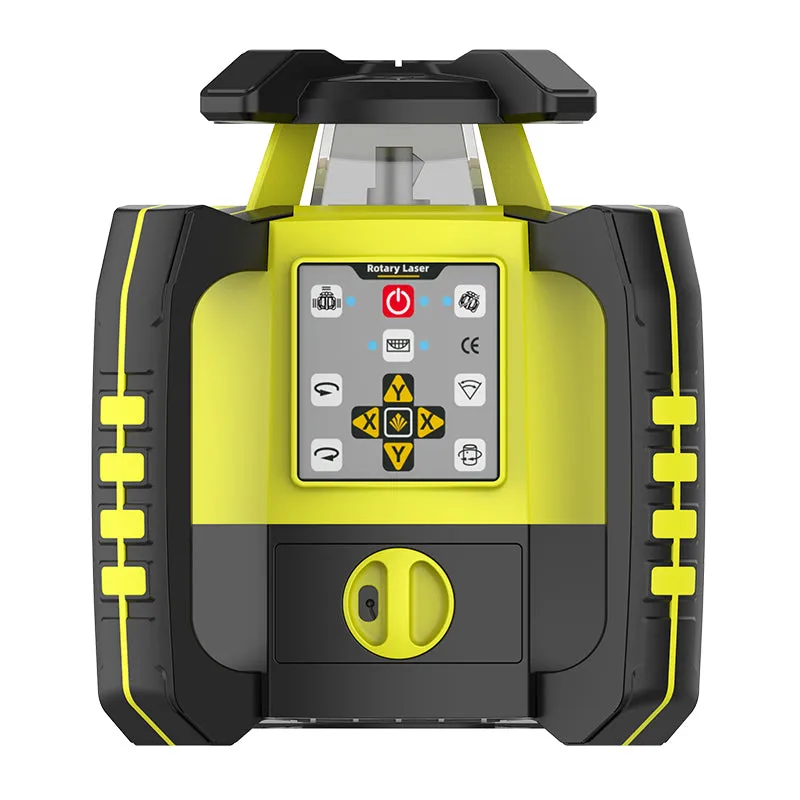

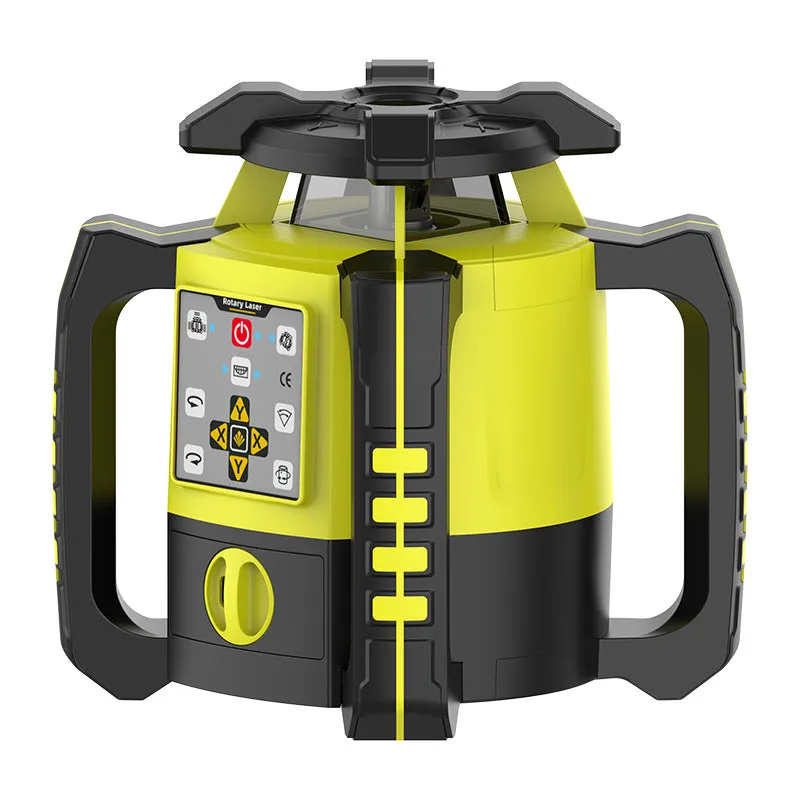

The TRL-525 Rotary Laser uses electronic leveling (gyroscope 3 independent electronic sensors), with an automatic leveling range of ±5° and excellent accuracy, with a leveling error of only ±0.35/10m.
The TRL-525 Rotary Laser is equipped with TRL-525HVR Rotary Laser and TRL-525HVG Rotary Laser,
equipped with green (515nm) and red (635nm) lasers, with maximum working radius of 500 meters and 400 meters respectively, meeting the needs of long-distance precision measurement.
It can perform 15°/45°/90°/180° area scanning, bidirectional tilt adjustment, and combined with RC200 remote control, it can realize slope operation in complex terrain and construction.
35 hours (red light) and 30 hours (green light) of lithium battery life, plus IP66 protection and 1 meter drop resistance, make it a sturdy and reliable tool in harsh environments.
Support APP and RC200 remote calibration, equipped with 4-key host operation and efficient plastic packaging box, the whole machine is compact (length 237×width 204×height 217mm), easy to carry.
TRL-525 Rotary Laser Specification Table:
| Laser type | TRL-525HVR | TRL-525HVG |
| Laser type/wavelength | Green laser (515nm-30mw) Upper/Lower | Red laser (635nm-10mw) Upper/Lower |
| Leveling way | Electronic leveling(gyroscope 3 individual electronic sensor) | |
| Leveling range | ±5° | |
| Leveling accuracy | ±0.35/10m | |
| Working radius(UsingLP500) | ≥500m | |
| Working radius(UsingLP700) | ≥400m | |
| Working temperature | ﹣20℃- 50℃ | |
| Laser rotation speed | 0/150/300/600rpm （Silent belt drive） | |
| Area scan | 15°/45°/90°/180° | |
| Tilt setting | Two-way | |
| Slope operation | Use the RC200 remote control | |
| Main unit operation | 4 keys /5 lights (Sync with remote control signal) | |
| Remote control operation | 12 keys /5 lights(Synchronize with host signals Remote control distance ≥300m） | |
| Power supply method | Lithium (Single section replaceable) AC direct supply | |
| Lithium working time | 35H(Red laser) | 30H(Green laser) |
| Calibration method | Remote control /APP | |
| packaging | Plastic box | |
| size | length237 Width204 height217(mm) | |
| Protection grade | IP66 | |
| Fall height | 1M（Main Machine only） | |
