Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data

• Flow Range: 0-10 GPM
• Head Range: 0-9 Feet
• Minimum Fluid Temperature: 40¦F (40¦C)
• Maximum Fluid Temperature: 220¦F (104¦C)
• Maximum Working Pressure: 125 PSI
• Connection Sizes: 3/4", 1 , 1-1/4", 1-1/2" CI Flanged or 1/2 Swt, 3/4" Swt, 3/4 NPT, or Union

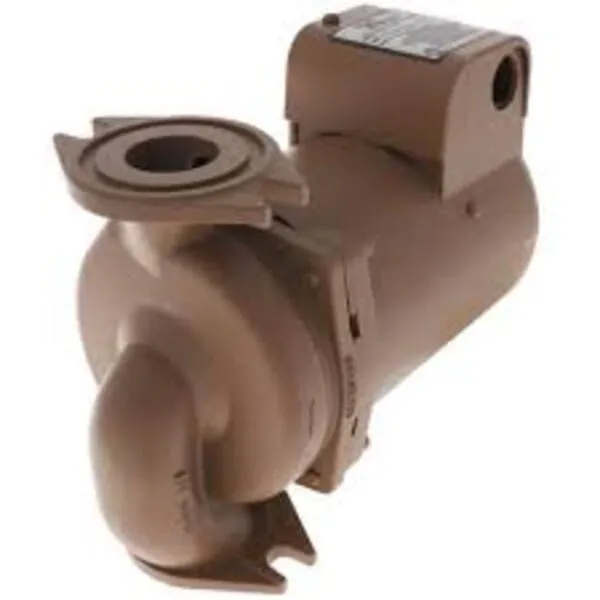

The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
Features

• Standard High Capacity Output-Compact Design
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Unique Replaceable Cartridge Design-Field Serviceable
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Cast Iron, Flanged or Bronze Construction with Sweat, Threaded or Union Connections
• Typical Applications
• Hydronic heating
• Domestic hot water recirculation
• Hydro-air heating/cooling
• Heat recovery units
• Water source heat pumps
• Drain down open loop solar systems
• Potable water applications

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
