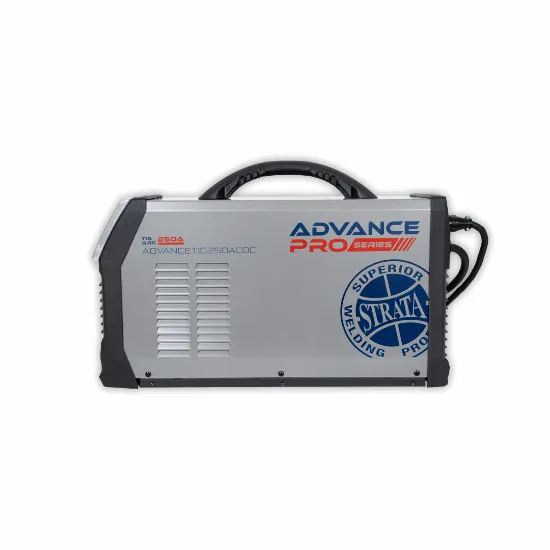

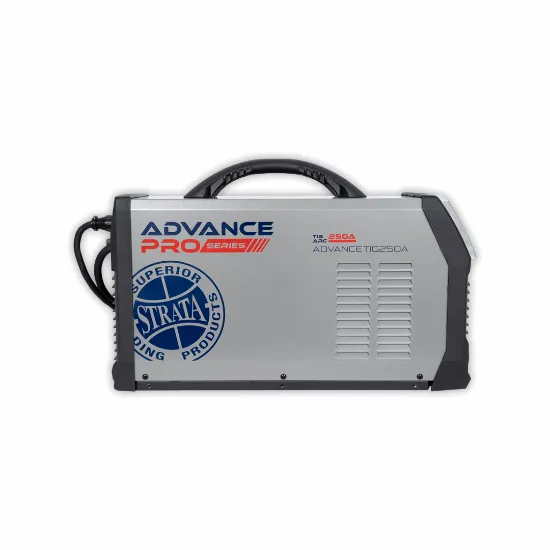

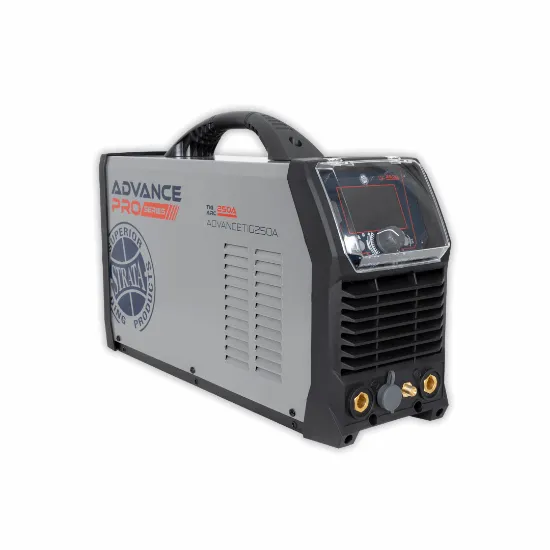

250A AC/DC Strata Inverter TIG Welder - AdvanceTig250ACDC

Whether you're working on industrial applications or intricate custom jobs, the full-color LCD screen and memory settings make it easy to achieve perfect results every time.

This powerhouse delivers a 250A output with ACDC pulse welding and innovative synergic settings for effortless parameter adjustments. With enhanced safety features and generator compatibility, it’s built for the toughest conditions.

Featuring the latest IGBT and active PFC technology the AdvanceTig250ACDC is reliable, easy to use and energy efficient.

Designed tough with IP23 and high quality, over-specified components - this machine is made for rugged NZ workshops and onsite tasks.

Features:

Max Ouput (Tig/Arc) - 250A

Max Electrode Size - 4.0mm

Input Power Supply - 15A 230V

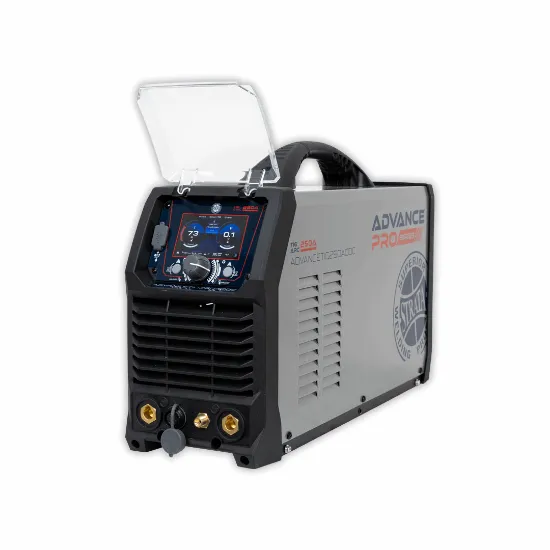

Full colour LCD control screen - Intuitive and clear visibility and setting of control parameters

TIG Smart Set Synergic Mode - Easy setting of welding parameters according to material, thickness and joint type.

Spot Welding Mode - Special feature for welding very thin material without heat distortion.

With active Power Factor Conversion (PFC) you get increased duty cycle and energy efficiency. Can be safely used with long extension lead

20 memory setting give users the ability to quickly save and recall control settings for specific jobs.

Ultimate control for every AC tig welding application - AC Sine, Square, Triange and Mixed Wave options.

Faster AC TIG welding speeds with the AC/DC Mix and Enhanced Fusion Feature.

IGBT inverter technology for smooth and stable welding output and increased reliability.

2T, 4T & Bi-Level Trigger Control Modes trigger control modes - Ease of operator use for all job applications.

Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment.

Digital microprocessor control system gives accurate and reliable setting of control parameters.

Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference.

Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety.

Industrial IP23 casing with front panel protection resists damage, moisture and corrosion.

Lightweight & compact design, ideal for portable applications.

Extreme stress tested in production up to 440V, ensuring rugged reliability.

MMA  Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.

Smart Cooling Fan System - Reduces noise and intake of environmental contaminants into machine.

Designed to work with generator power supply with protection from power surges. (Min 9kVA)

Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine

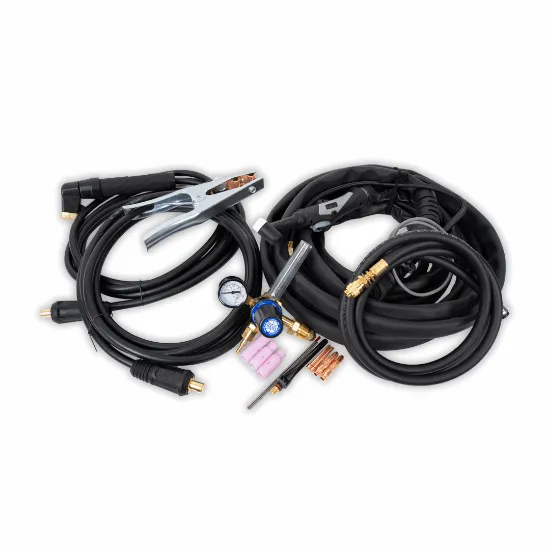

Accessories Include:

4m Arc Lead.

4m Earth Lead.

Strata Professional PRO26 25ft TIG torch with thumbwheel remote control.

2-Stage flowmeter, argon gas regulator.

2m QC gas hose kit.

Optional Extras

Wired / wireless foot pedal control.

Dual Mode Remote Control - Digital up / down button or potentiometer thumb wheel torch remote control options through a single connection plug.

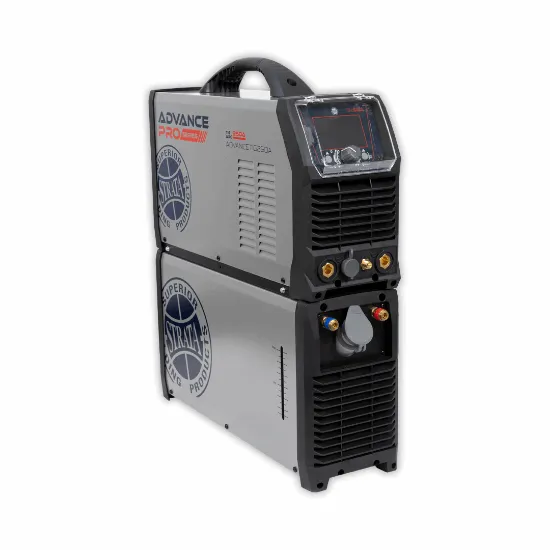

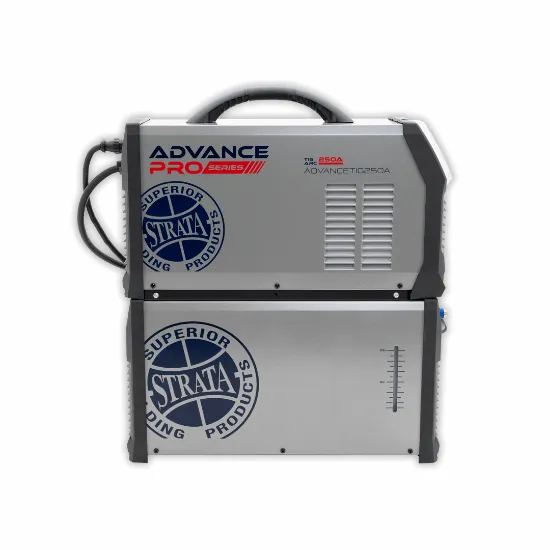

Water Cooler Pack Includes:

Ability to use water cooled torch option in an easily portable, compact package, with torch low coolant sensor protection.

1x Water Cooler c/w Interface Cable

1x Pro-Grip 18 Torch 25ft, 10K Potentiometer, & c/w large Cable Plug & 12 Pin Plug

1x ACDCKIT – Tig Consumable Starter Kit

1x 5L WTC5 Weld Torch Coolant

Model: ADVANCETIG205ACDC

Specifications:

All Prices Include GST
