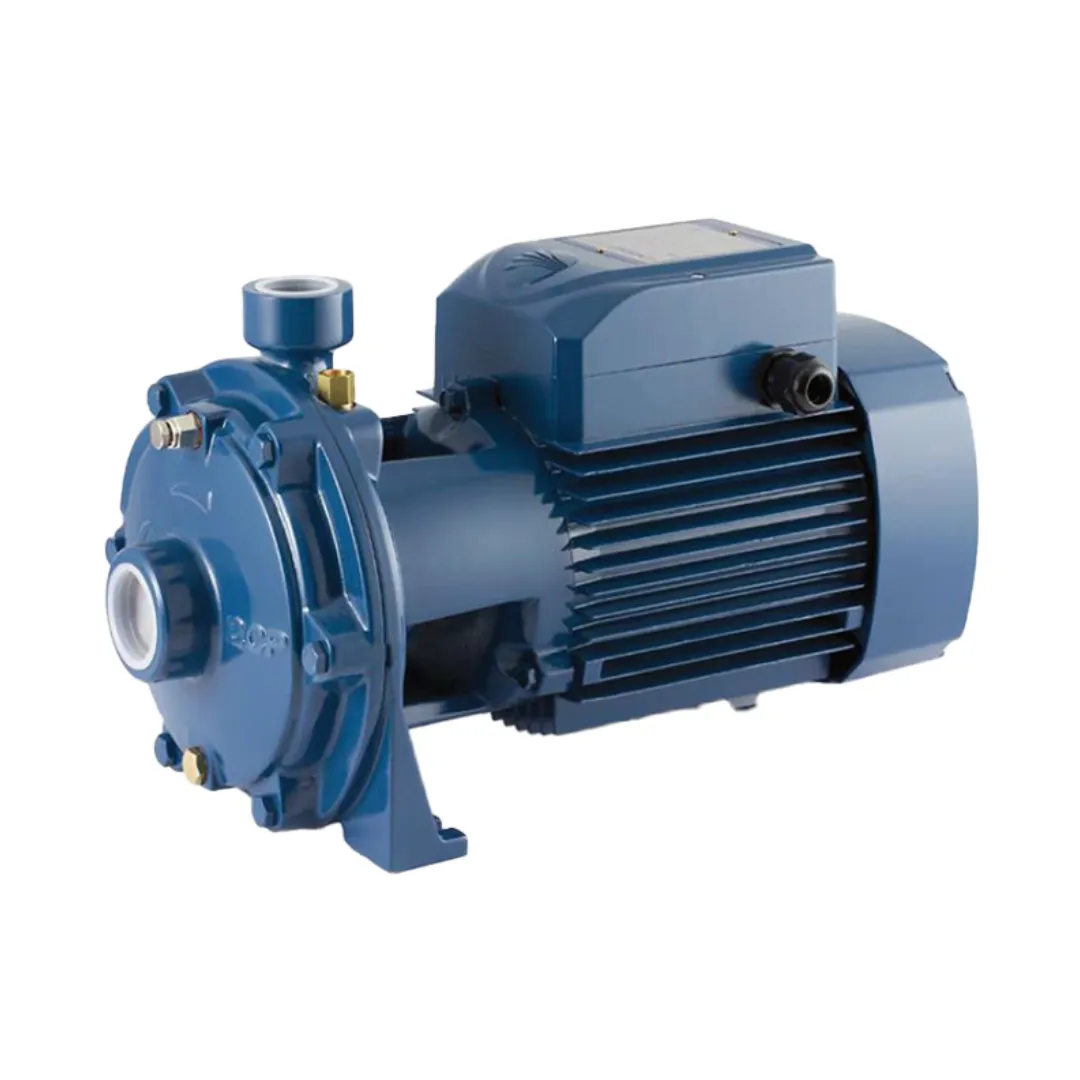

Onga SPN200 1.50 Manual Twin Impeller Hi-Flow Domestic Transfer Pump (Max 140LPM/540KPA)

The Onga SPN200 1.50 Manual Twin Impeller Hi-Flow Domestic Transfer Pump (Max 140LPM/540KPA) is a heavy-duty, dual impeller pump made of durable cast iron. Its updated design offers strength and reliability for a variety of uses, including domestic, civil, and industrial applications. With its excellent performance and versatility, this pump is an optimal choice for distributing water and boosting pressure when used in conjunction with pressure tanks.

FEATURES

• Easy installation and quiet
• High efficiency twin impellers
• Rugged cast iron construction with brass impellers
• High efficiency twin impellers
• High quality mechanical shaft seal
• Threaded suction and discharge connections [2CP6S/2CP7S/2CP9T]:
  • Suction: 32mm [1/4” BSPF]

  • Discharge: 25mm [1“ BSPF]
• TEFC motor, 2900rpm, 240V single phase or 415V 3 phase, IP44 enclosure
• 240 volt units supplied with 1.5m lead and 3 pin plug

APPLICATIONS

• Washdown
• Heating & Cooling systems
• Pressure boosting
• Agriculture
• Horticulture

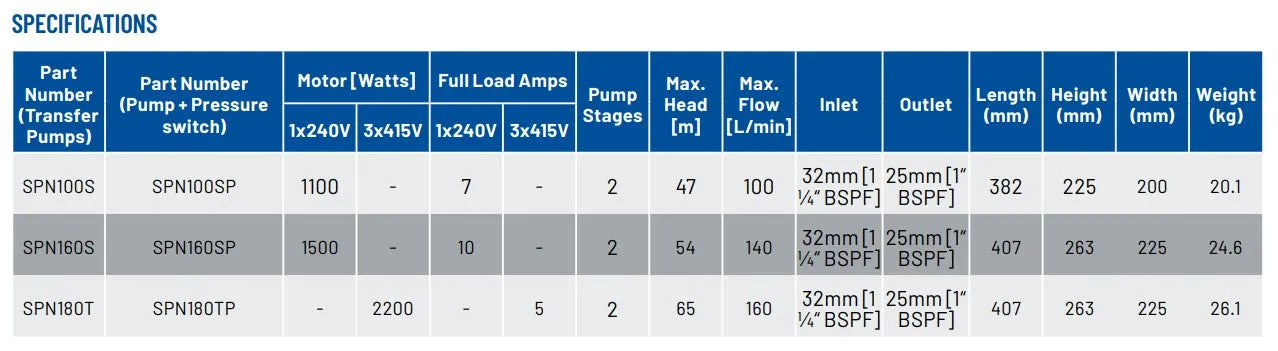

SPECIFICATIONS

• Max head: 54m
• Max Flow: 140LPM
• Power: 1.50kW

OPERATING CONDITIONS

• Clean Water
• Liquid Temperature: 0°C to 90°C
• Max. Ambient Temperature: 40°C
