Product Details
＋

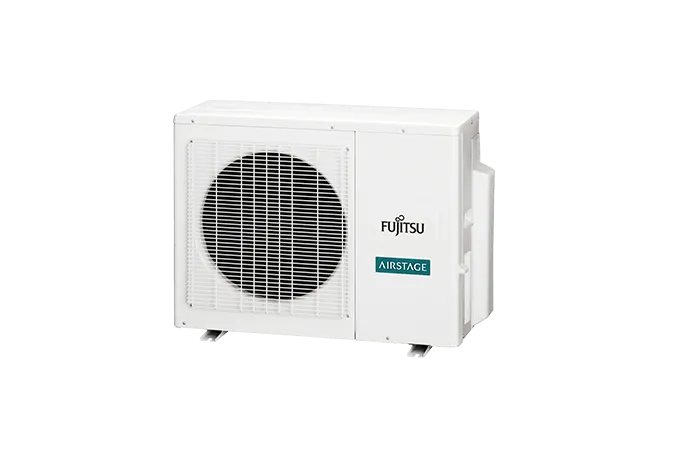

The Fujitsu 2 Zone 18,000 BTU Multi-Zone Outdoor Unit is used to run up to 2 indoor units at once in a multi-zone application. Mix and match various types of indoor units and connect them to one multi-zone outdoor unit.
General Information
- Fujitsu Multi-Zone Outdoor Unit
- Standard Multi-Zone Outdoor Units
- Cooling & Heating
- No
- 2
- 18,000 BTU
Package Includes
- AOU18RLXFZ
Features
- DC Twin Rotary Compressor: high performance compressor, low noise
- Mix and match various types of indoor units
- 2 Zones Available - mix and match indoor units
- SEER ratings between 19.0-20.0
Product Specs
- 14,000-21,000 BTU
- R410
- when Cooling: 49 dB(A)
- when Heating: 49 dB(A)
- Minimum Line-set Length: 16 ft
- Maximum Line-set Length: 82 ft
- Minimum Line-set Total: 49 ft
- Maximum Line-set Total: 164 ft
- Pre-Charge Length: 98 ft
- Line-set Requirements: Liquid 1/4" x 2 | Gas 3/8" x 2
- 15
- Dimensions (HxWxD): 27 9/16", 35 7/16", 13"
Performance
- Rate Capacity Cooling/Heating: 18,000 / 22,000 BTU
- -5 to 75
- Cooling Operating Range (F): 14-115
- SEER Rating (Non-Ducted, Ducted, Mix): 18, 16, 17
- HSPF (Non-Ducted, Ducted, Mix): 9.3, 9, 9.2
- EER (Non-Ducted, Ducted, Mix): 12.5, 12.1, 12.3
- COP (Non-Ducted, Ducted, Mix): 3.44, 3.52, 3.48
