Product Details
＋

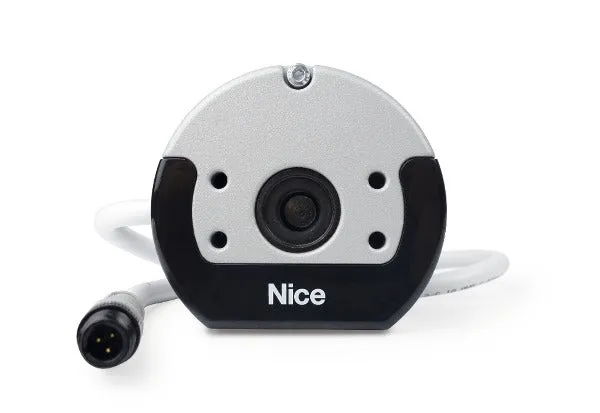

- Tubular motor with mechanical limit switch and manual emergency override mechanism.
- Solutions to meet all needs: usable both for large-scale applications with the 50 Nm 12 rpm version and small structures with the 15 Nm 17 rpm version.
- Intuitive adjustment of up and down limit positions, thanks to the mechanical limit switch.
- Easy to install: fixing directly on the head thanks to the M6 holes with 48 mm centre distance, no support required.
- Wired and/or radio connection to climatic sensors via external control units.
Support
Technical Information
| Motor Diameter | 45mm |
| Type Of Engine | Wired |
| Limit Switches | Mechanical |
| Automatic Adjustment And Readjustment: | Nope |
| Supply Voltage : | 230 Volts - 50 Hz |
| Power (In Watts): | 1.10 |
| Thermal Cut-Out Delay: | 4 Mins. |
| Torque (Nm) | 30 |
| Speed (rpm) | 17 |
| Lifted Weight (kg) | 56 |
| length (mm) | 637 |
| Weight Of Motor | 3.4kg |
