Product Details
＋
Features:

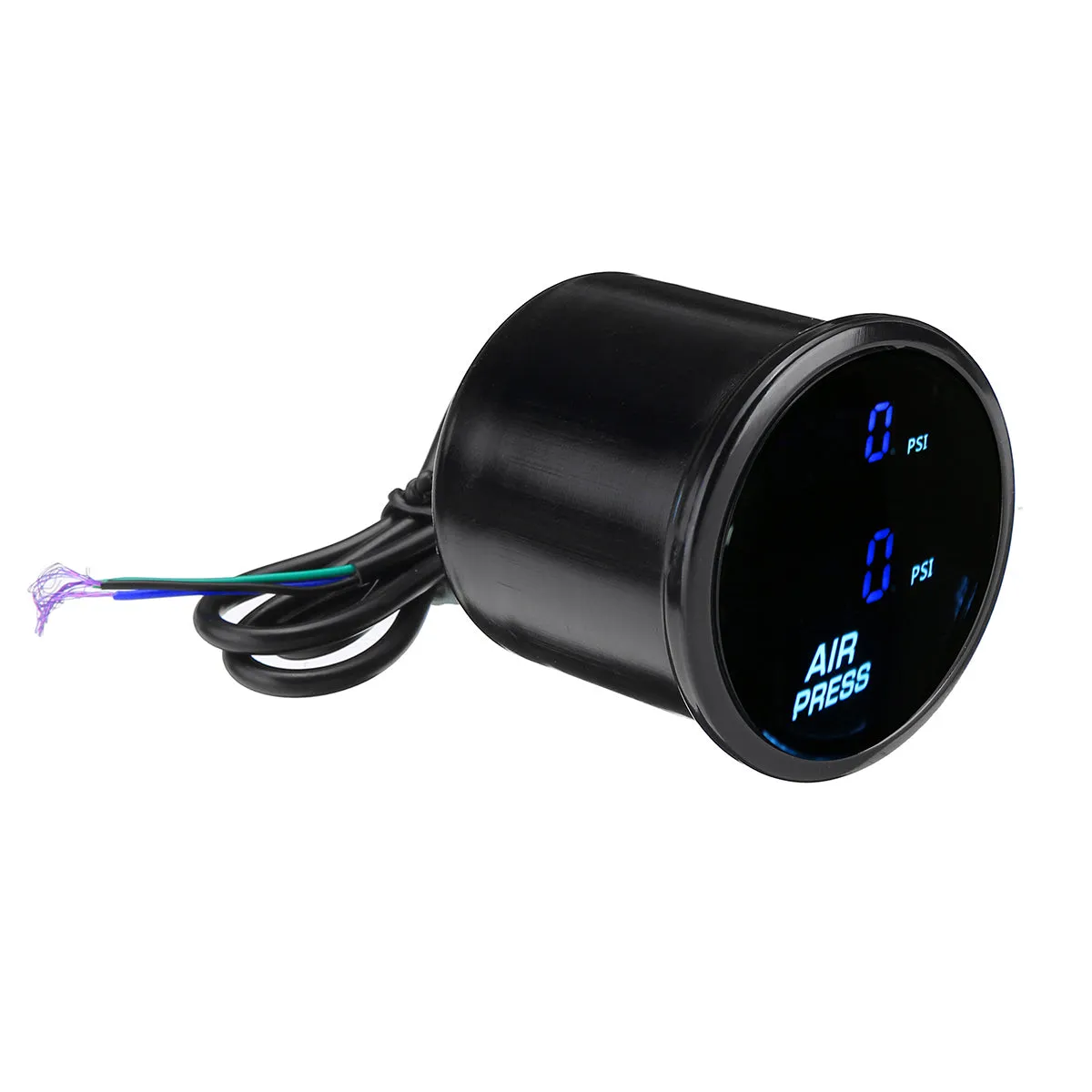

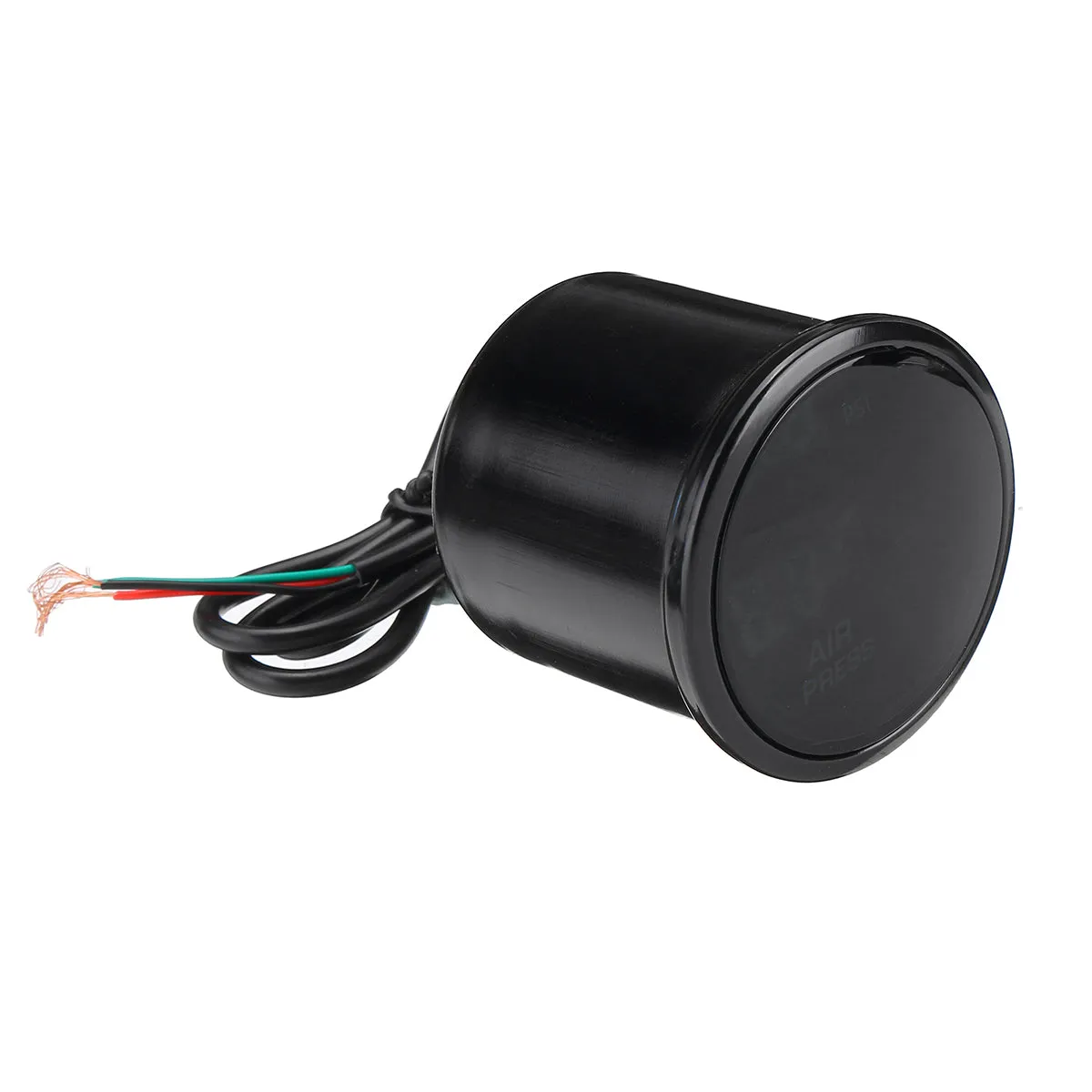

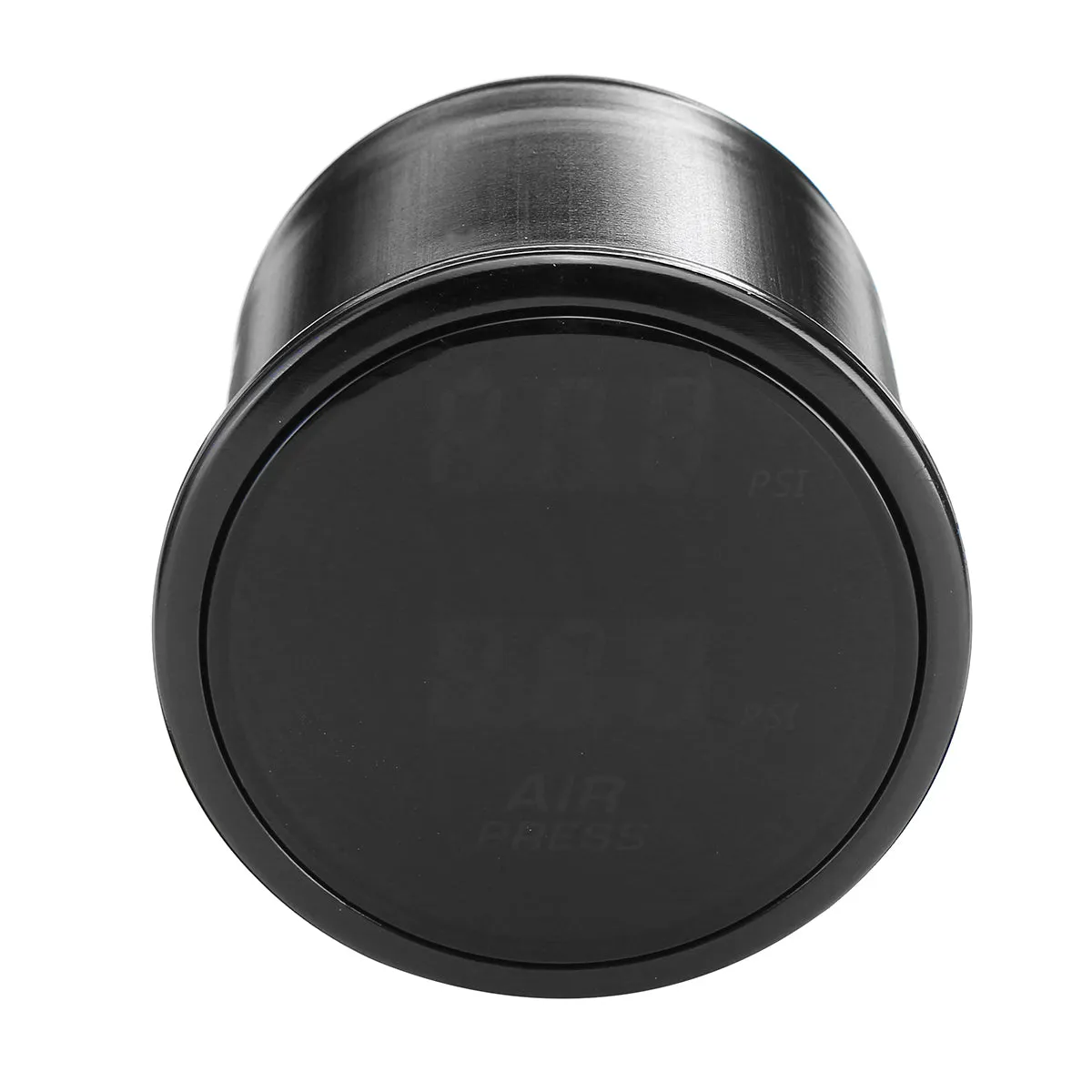

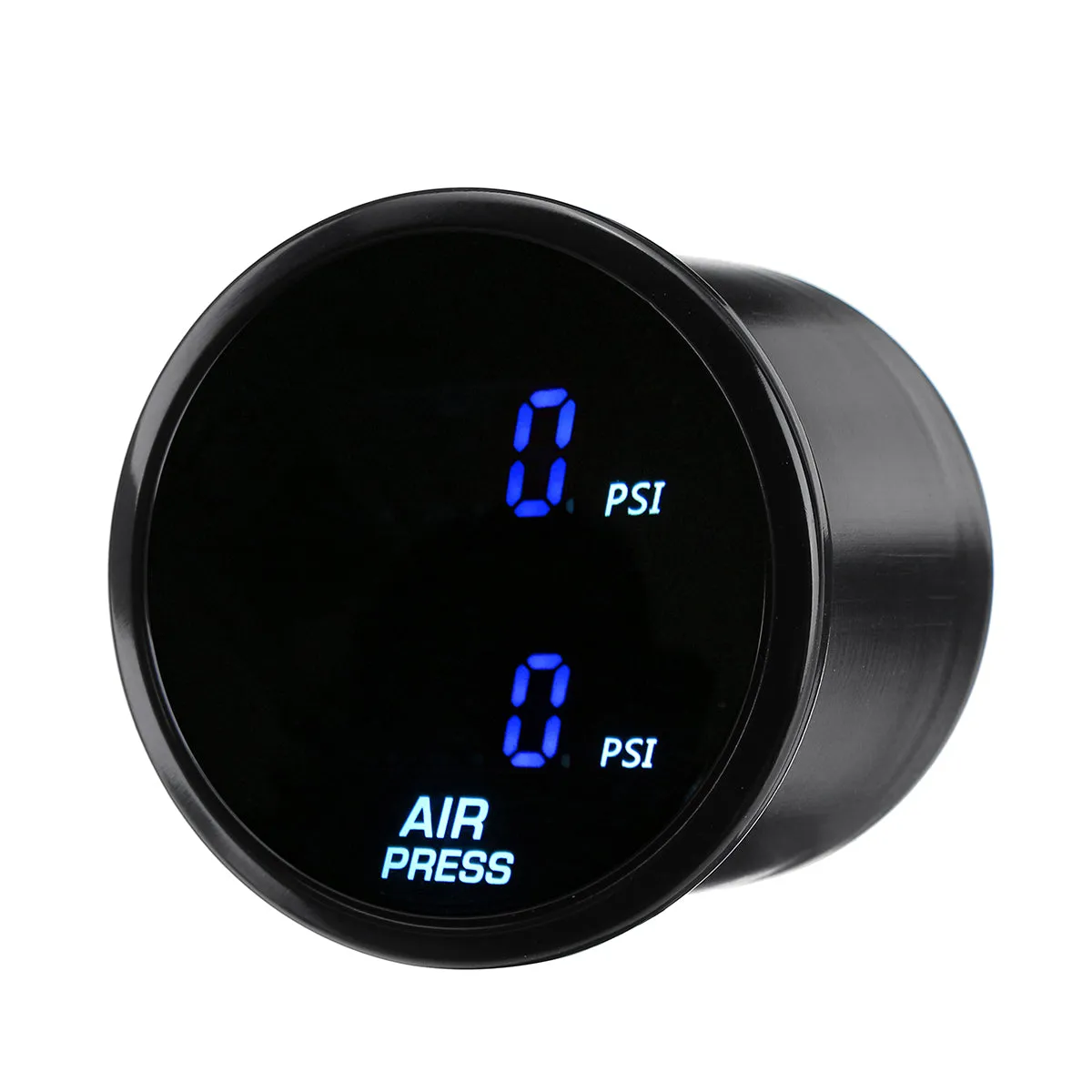

-52mm dual air pressure gauge with blue LED readings of pressure,rapid and accurate response, easy to read.
-The range of the sensors is from 0 psi to 290 psi.
-The thread on the sensors is 1/8NPT.
-High contrast PMVA LCD screen and high quality sensors with heat-resistant.
-The sensors are full electronic, so there is no chance of a leak occurring in tubing going to inside your cab, as there is none! Only wiring.
-Try to avoid having the sensors located where water can accumulate, best place is the top of any air reservoir.

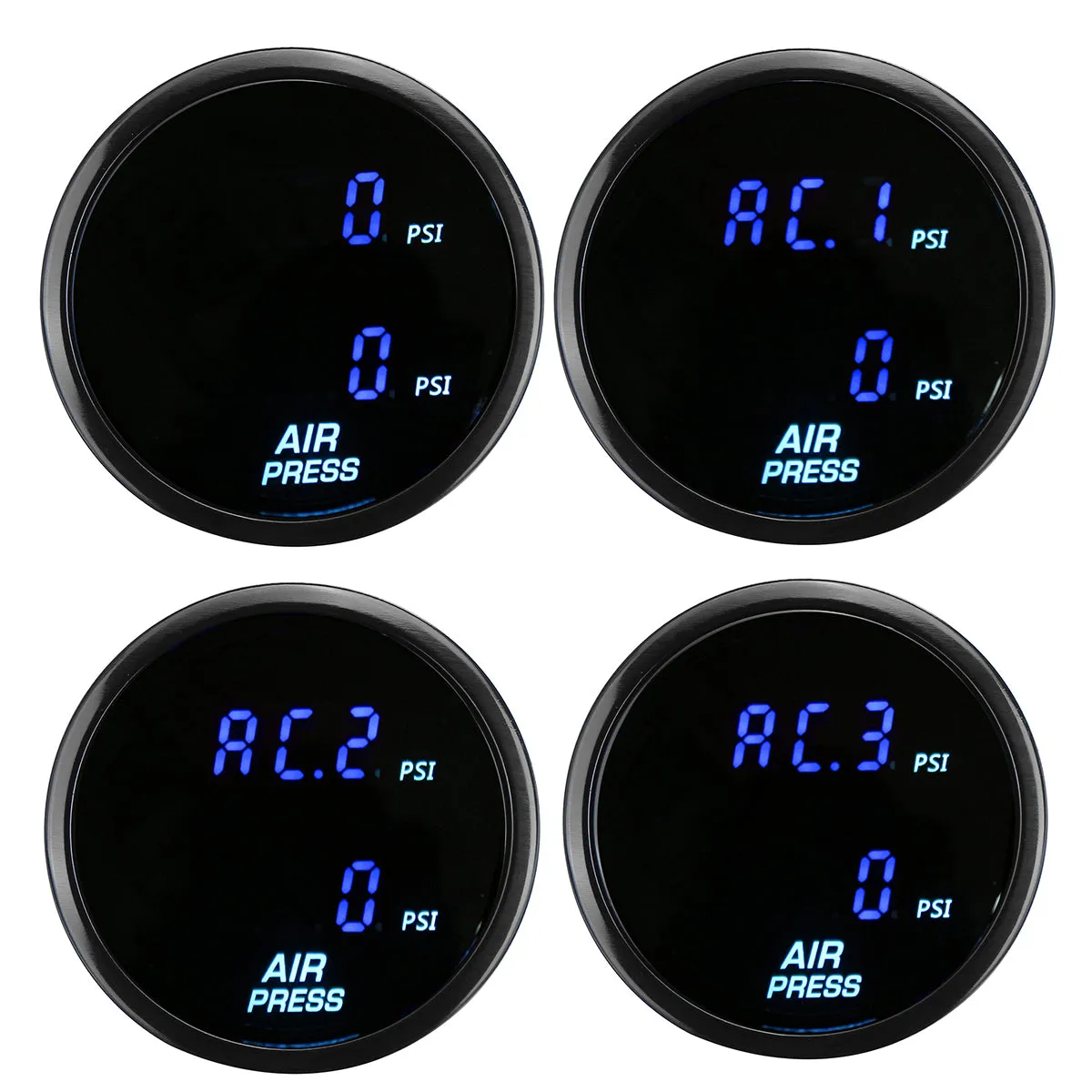

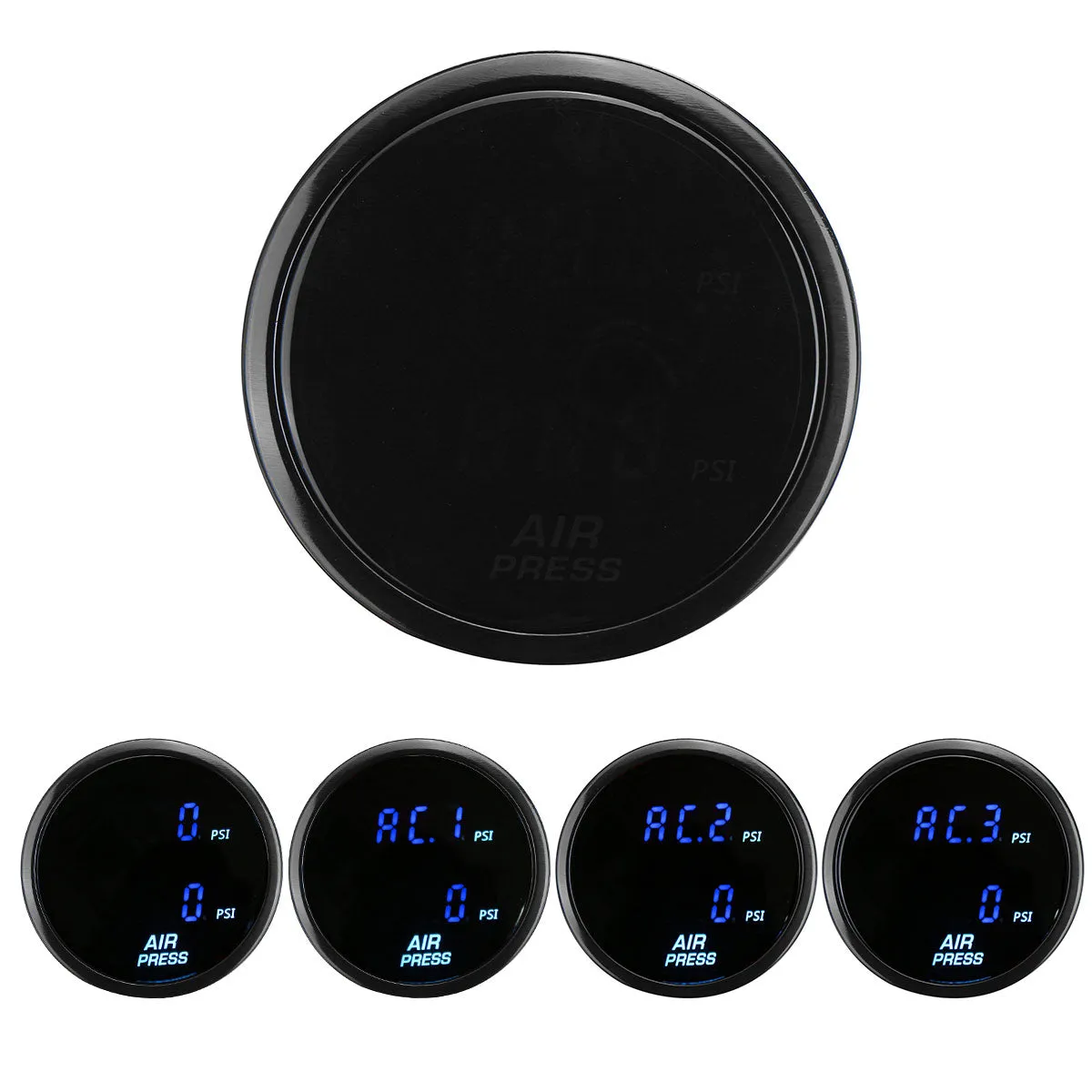

-3 various opening ceremonies can be chosen.
Specification:
Model Number: E78016
Product Name: 2' 52mm Air Suspension Pressure Gauge
Material: Aluminum Alloy & Plastic
Housing Color: Black
Face Color: Black
Light Color: Blue
Voltage: 12V
Diameter Size: 2' (52mm)
Unit: PSI
Current: IGN Maximum 0.3A ILM 0.3A

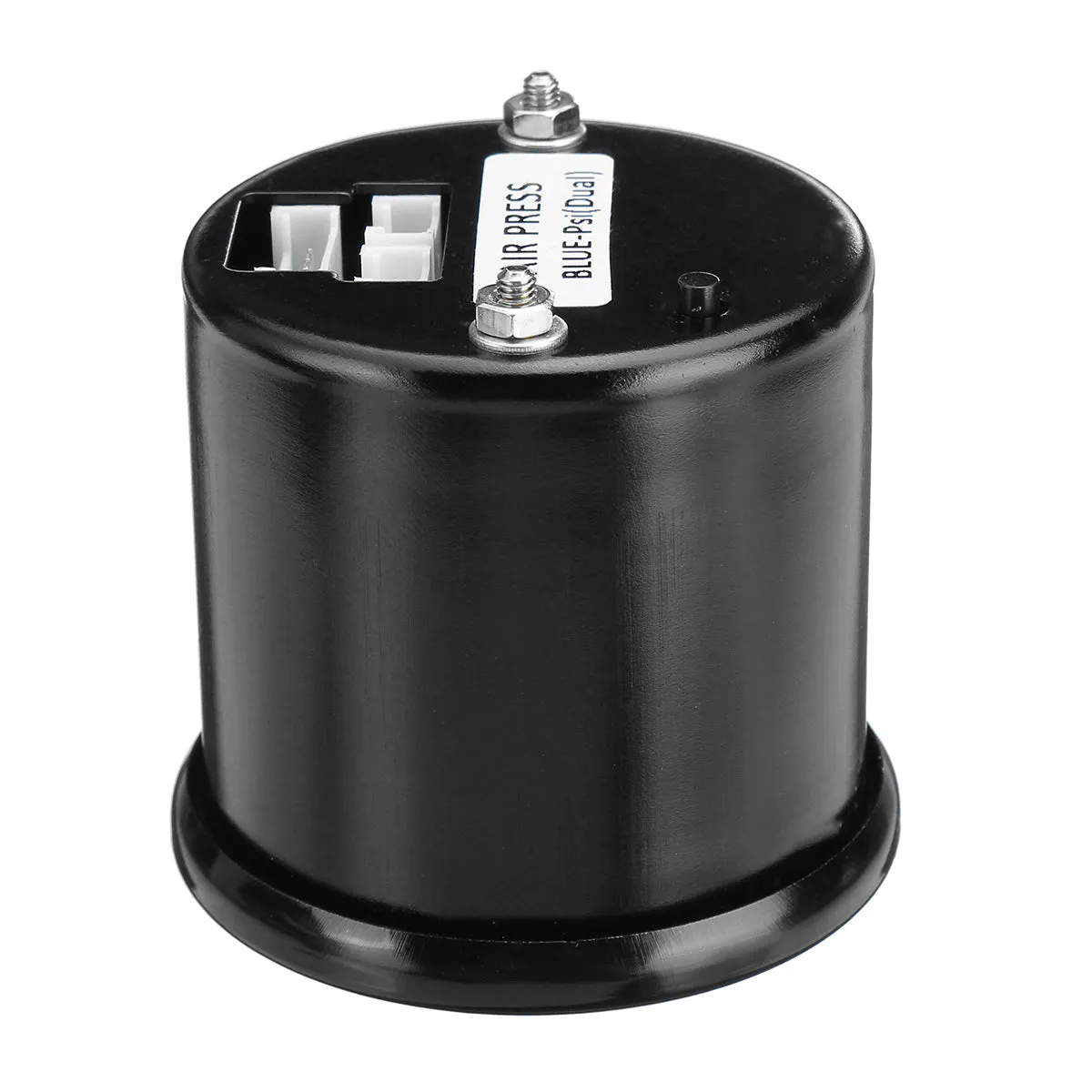

Wire Connection:
Red: Ignition switch 12v( )
Green: Headlight switch 12v( )
Black: Vehicle ground
Fitment:
Universal 12V Car 2'/52mm diameter Air Suspension Pressure Gauge
(The compatibility just for reference .Please make sure the item fit for your car before purchase.)

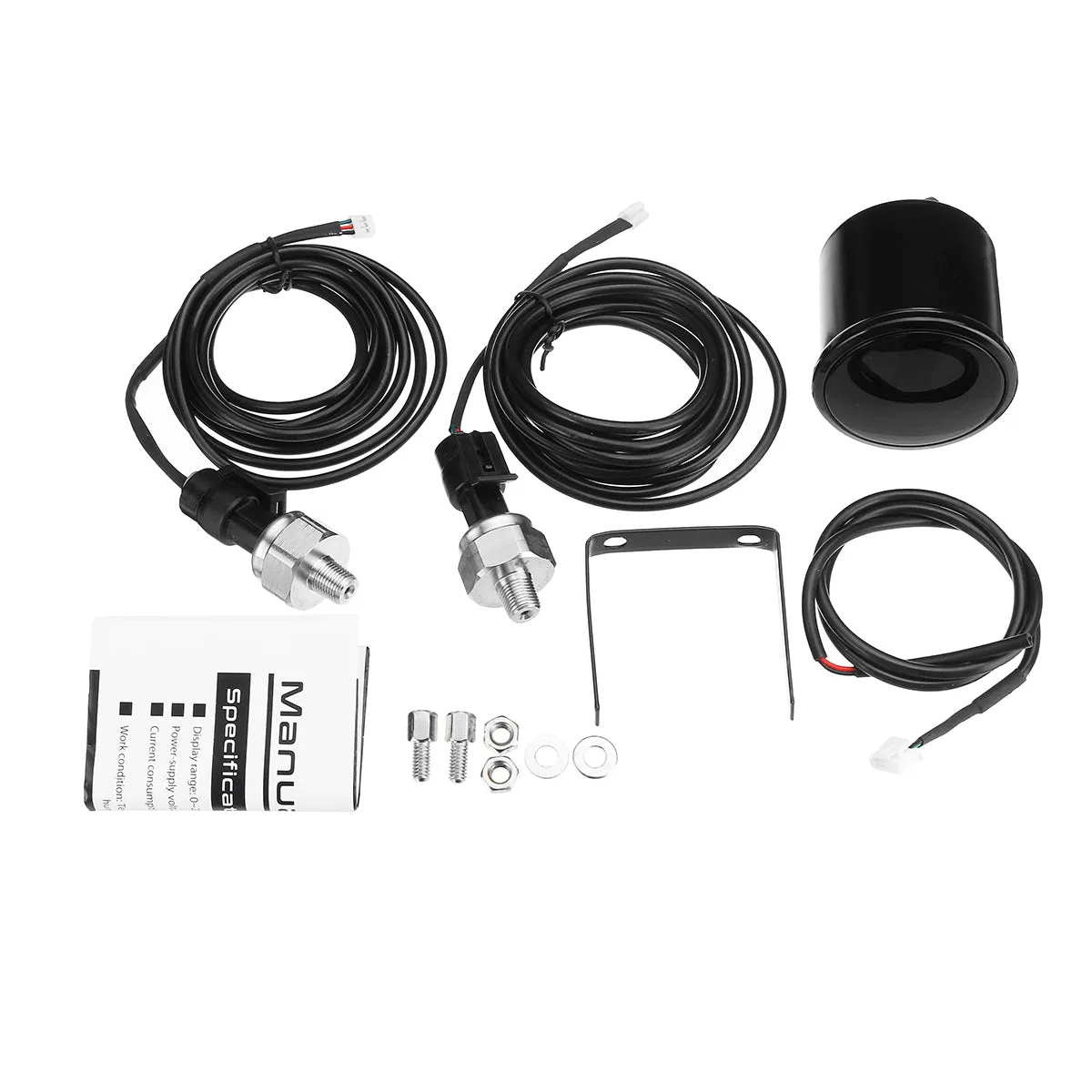

Package Includes:
1 x Air Suspension Pressure Gauge

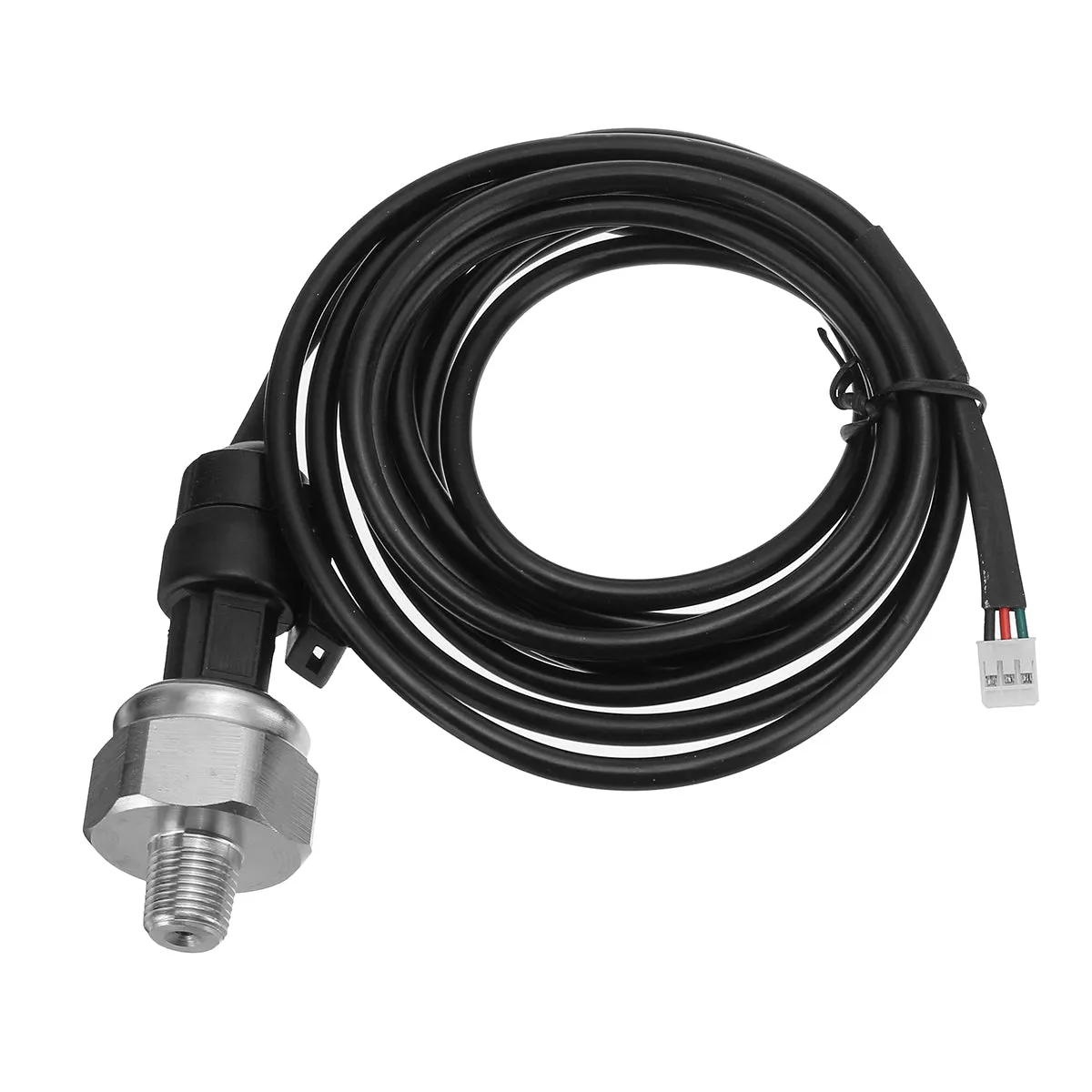

2 x 1/8NPT Electronic Sensors
1 x U Bracket
1x Power Wire
1x Bolts Pack
1 x English Manual
Details Pictures:
