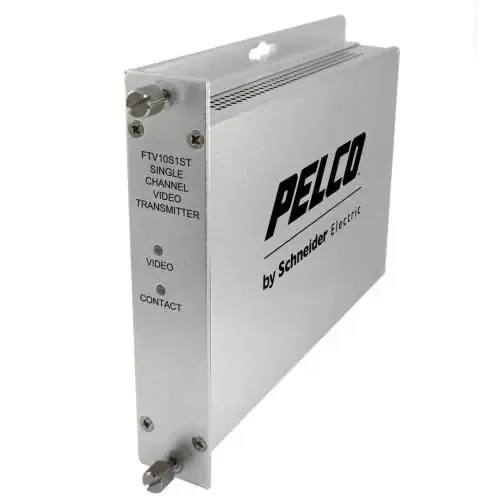

1 Channel Single Mode ST Connector Video Fiber Transmitter FTV10S1ST

Also Known As:

1 Channel Fiber Transmitter, Single Mode Fiber Transmitter, ST Connector, Video Fiber Transmitter

About:

Single 10-bit Digital Video Transmitter Single-mode ST Connector. The FTV10S1ST fiber transmitter transmits a single channel of video over one optical fiber. It is compatible with the FRV20 receiver and is available in single-mode versions. The plug-and-play design of the FTV10S1ST ensures simple installation with no need for electrical or optical adjustments. Its modular design allows the unit to be rack-mounted using the EURACK/USRACK chassis, or it can be used as a stand-alone module, either placed on a desktop or mounted to a wall (wall mount kit not required). For stand-alone and wall mount installations, external power is needed for the FTV10S1ST unit, which can be provided by the recommended FEXTPS fiber external power supply.

Features:

• 10-Bit Digitally Encoded Video for High-Quality Video Transmission over a Single Fiber
• Single-Mode Fiber Support for Distances up to 54 km (33.6 mi)
• Exceeds All Requirements for EIA RS-250C Short-Haul Transmission Specifications
• Laser Diode for Transmission of Optical Signals
• Compatible with NTSC, PAL, or SECAM Video Standards
• Designed to meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
• Voltage Transient Protection on All Power and Signal Input/Output Lines
• LED Status Indicators for Monitoring All Critical Operating Parameters
• Stand-Alone or Rack-Mountable Modular Design

Specifications:

• Product Type: Video Fiber Transmitter
• Fiber Optic Transmission use: Video
• Channels: 1 Channel
• Connection Type: ST
• Format: Single Mode
• Part Number : FTV10S1ST
